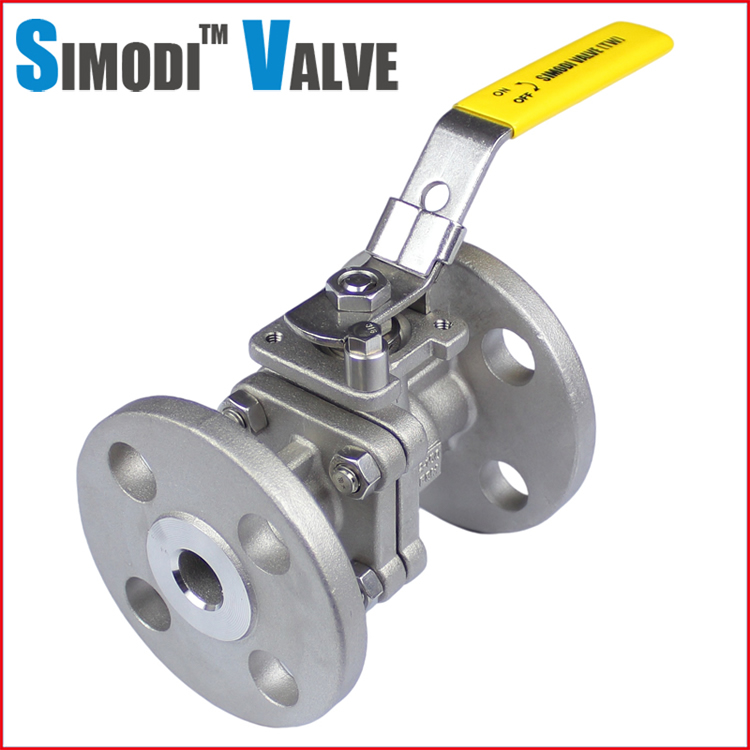

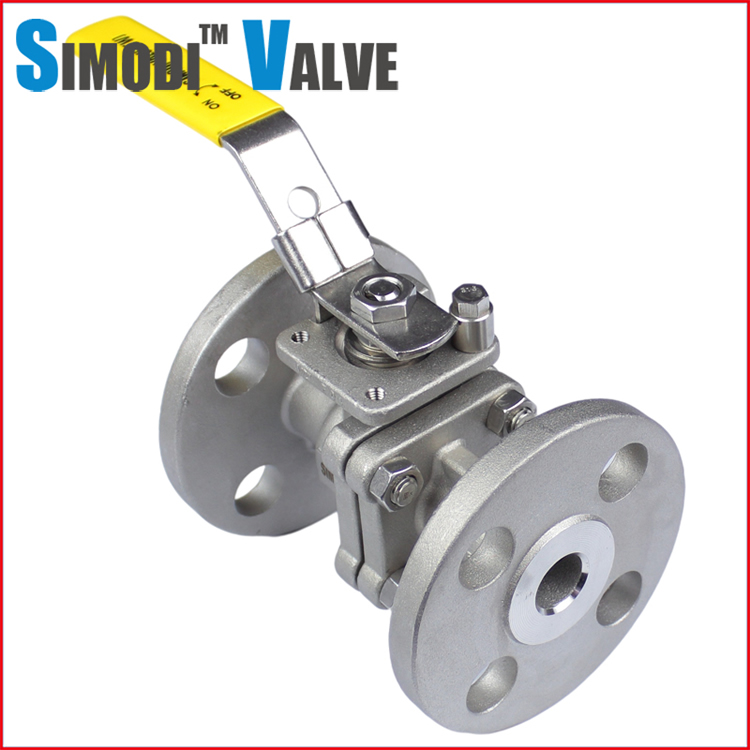

ANSI/ASME 150 lb Class Two-Piece Flanged Ball Valve

BVB-12F -150 Two Piece Flanged Ball Valve

SPECIFICATIONS
Available Material	CF8M/CF8/WCB
Working Pressure	ANSI CL150
Ball Bore	Full
End Connection	ANSI B16.50 CL150
Size Range	1/2" to 8 "
ISO Mount	ISO5211 MOUNTING PAD

ADDITIONAL APPLICATION
Operation	Handle/Actuator
Options	SEAT:PTFE/PTFE+25%GL/PTFE+50%SS/TFM1600/TFM4215

undefined

ANSI/ASME 150 lb Class Two-Piece Flanged Ball Valve

undefined

BVB-12F-150 Two Piece Flanged Ball Valve

SPECIFICATIONS
*Working Pressure: 1/2”~8”CLASS150
*Temperature Range: -15～150℃(PTFE)
*Blow-Out-Proof Stem Design
*Antistatic Device
*Investment Casting Solution Treatment
*FIRE SAFE DESIGN
*ISO5211 Direct-Mounting of Actuators of Valves Design
*Design Standard：ANSI B16.34
*Face to Face：ANSI B16.1
*Flange End:ANSI B16.50
*Full port
*Operator: Lever/Actuator

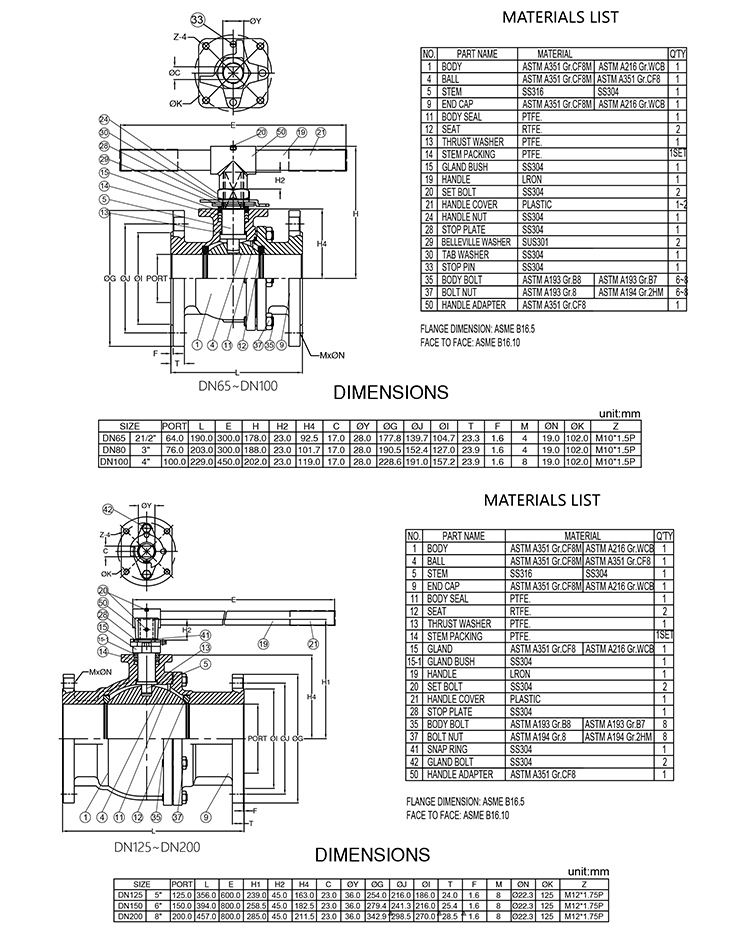

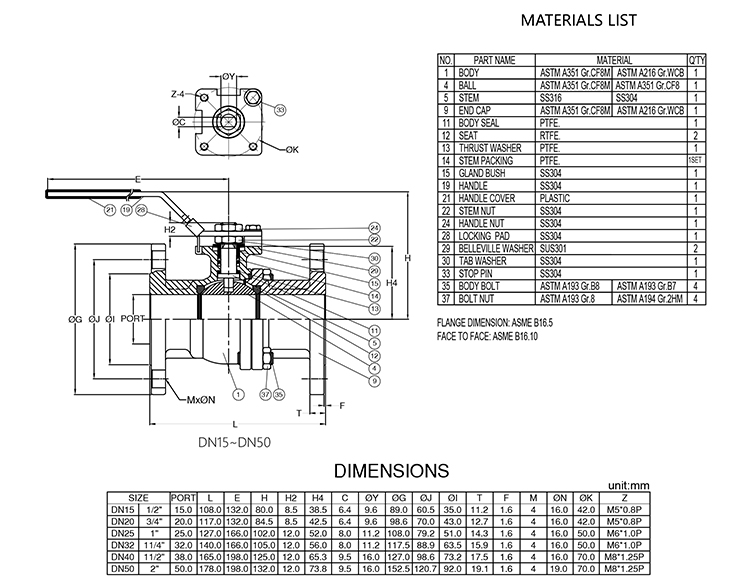

Drawing of ANSI/ASME 150 lb Flanged Ball Valve
